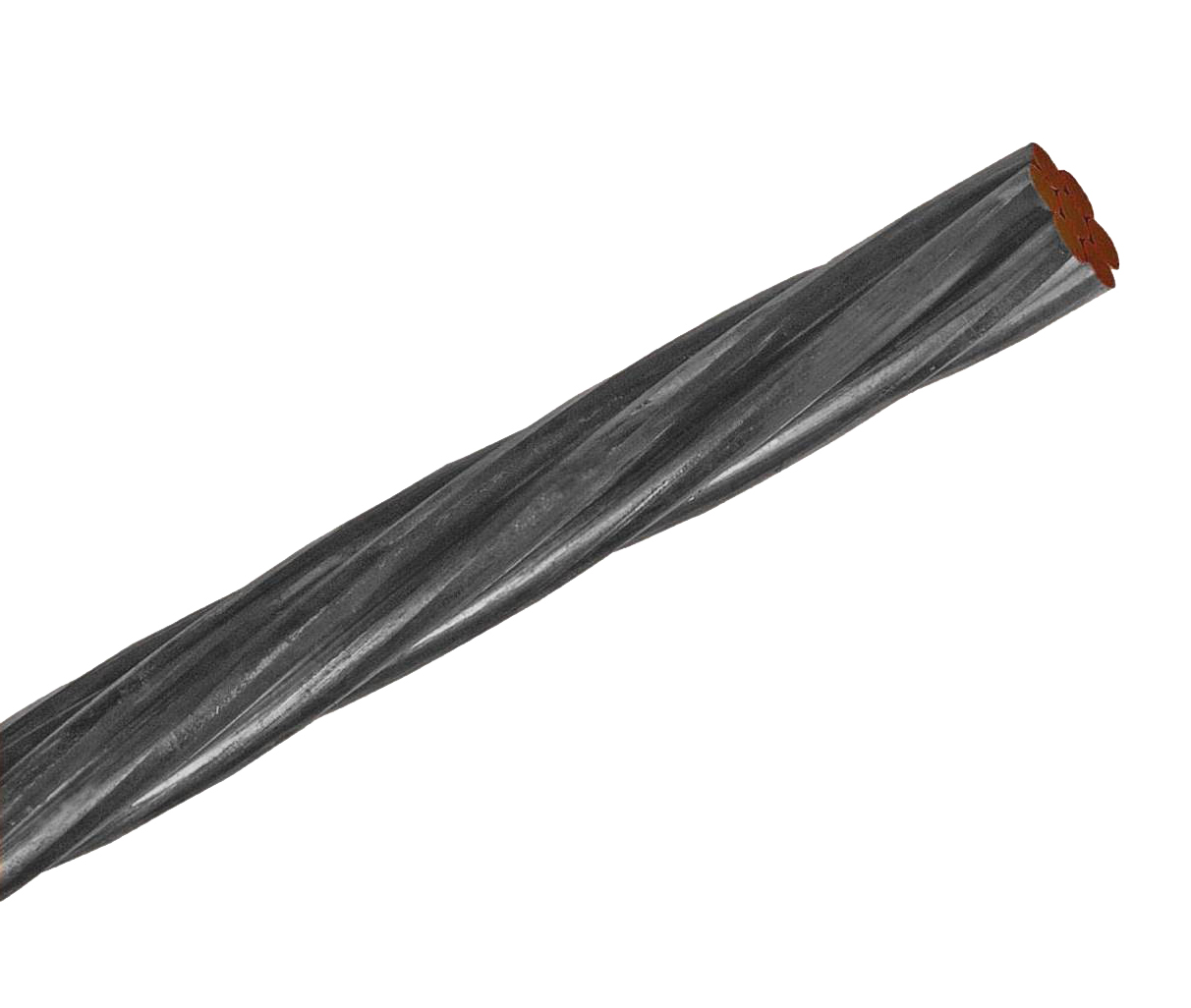

Tinned Copper - Stranded
Bare and Tinned Copper
Dimensions and weights are nominal values, subject to standard manufacturing tolerances. Conductor ampacities are in accordance with the NEC, latest edition.
Updated 12/6/2021
APPLICATIONS
Used for overhead electrical transmission and distribution lines, grounding electrical systems, electrical test equipment and other infrastructure.
CONSTRUCTION
Conductors: Concentric-lay stranded bare copper conductors available in soft temper only.
Tin Coating: A soft drawn conductor is either hot dipped or electroplated with tin. This process significantly improves corrosion resistance.
STANDARDS
- ASTM B3 - Soft or annealed copper wire
- ASTM B8 - Concentric-lay stranded copper conductors, all tempers
- ASTM B33 - Tinned soft or annealed copper wire
- ASTM B258 - Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round Wires Used as Electrical Conductors
- Federal Specification QQ-W-343 - Wire, Electrical, Copper (Uninsulated)
Dimensions and weights are nominal values, subject to standard manufacturing tolerances. Conductor ampacities are in accordance with the NEC, latest edition.
Updated 12/6/2021
Item # |
Size
|
Strands
|
Overall
|
Weight
|
Breaking
|
Ampacity |
|---|---|---|---|---|---|---|
| 8-01BC701 8-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 8 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.146 |
Weight (lb/1000 ft) N/A 51.0 |
Breaking Strength Soft (lbf) N/A 499 |
Ampacity N/A 95 |
| 6-01BC701 6-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 6 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.184 |
Weight (lb/1000 ft) N/A 81.1 |
Breaking Strength Soft (lbf) N/A 794 |
Ampacity N/A 130 |
| 4-01BC701 4-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 4 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.232 |
Weight (lb/1000 ft) N/A 128.9 |
Breaking Strength Soft (lbf) N/A 1320 |
Ampacity N/A 170 |
| 3-01BC701 3-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 3 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.260 |
Weight (lb/1000 ft) N/A 162.50 |
Breaking Strength Soft (lbf) N/A 1670.0 |
Ampacity N/A 200 |
| 2-01BC701 2-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 2 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.292 |
Weight (lb/1000 ft) N/A 204.9 |
Breaking Strength Soft (lbf) N/A 2110 |
Ampacity N/A 230 |
| 1-01BC701 1-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 1 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.332 |
Weight (lb/1000 ft) N/A 258.4 |
Breaking Strength Soft (lbf) N/A 2552 |
Ampacity N/A 265 |
| 1/0-01BC701 1/0-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 1/0 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.368 |
Weight (lb/1000 ft) N/A 325.8 |
Breaking Strength Soft (lbf) N/A 3221 |
Ampacity N/A 310 |
| 1/0-01BC1901 1/0-01BC1901/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 1/0 |
Strands (#) N/A 19 |
Overall Diameter (in) N/A 0.373 |
Weight (lb/1000 ft) N/A 325.8 |
Breaking Strength Soft (lbf) N/A 3221 |
Ampacity N/A 310 |
| 2/0-01BC701 2/0-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 2/0 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.414 |
Weight (lb/1000 ft) N/A 410.9 |
Breaking Strength Soft (lbf) N/A 4062 |
Ampacity N/A 355 |
| 2/0-01BC1901 2/0-01BC1901/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 2/0 |
Strands (#) N/A 19 |
Overall Diameter (in) N/A 0.418 |
Weight (lb/1000 ft) N/A 410.9 |
Breaking Strength Soft (lbf) N/A 4062 |
Ampacity N/A 355 |
| 3/0-01BC701 3/0-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 3/0 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.464 |
Weight (lb/1000 ft) N/A 518.1 |
Breaking Strength Soft (lbf) N/A 5074 |
Ampacity N/A 410 |
| 3/0-01BC1901 3/0-01BC1901/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 3/0 |
Strands (#) N/A 19 |
Overall Diameter (in) N/A 0.470 |
Weight (lb/1000 ft) N/A 518.1 |
Breaking Strength Soft (lbf) N/A 5074 |
Ampacity N/A 410 |
| 4/0-01BC701 4/0-01BC701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 4/0 |
Strands (#) N/A 7 |
Overall Diameter (in) N/A 0.522 |
Weight (lb/1000 ft) N/A 653.3 |
Breaking Strength Soft (lbf) N/A 6453 |
Ampacity N/A 480 |
| 4/0-01BC1901 4/0-01BC1901/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 4/0 |
Strands (#) N/A 19 |
Overall Diameter (in) N/A 0.528 |
Weight (lb/1000 ft) N/A 653.3 |
Breaking Strength Soft (lbf) N/A 6453 |
Ampacity N/A 480 |
| 250-01BC1901 250-01BC1901/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 250 MCM |
Strands (#) N/A 19 |
Overall Diameter (in) N/A 0.575 |
Weight (lb/1000 ft) N/A 771.9 |
Breaking Strength Soft (lbf) N/A 7940 |
Ampacity N/A 530 |
| 301-01BC1901 301-01BC1901/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 300 MCM |
Strands (#) N/A 19 |
Overall Diameter (in) N/A 0.628 |
Weight (lb/1000 ft) N/A 926.3 |
Breaking Strength Soft (lbf) N/A 9160 |
Ampacity N/A 590 |
| 350-01BC3701 350-01BC3701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 350 MCM |
Strands (#) N/A 37 |
Overall Diameter (in) N/A 0.681 |
Weight (lb/1000 ft) N/A 1081.0 |
Breaking Strength Soft (lbf) N/A 10580 |
Ampacity N/A 650 |
| 501-01BC3701 501-01BC3701/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 500 MCM |
Strands (#) N/A 37 |
Overall Diameter (in) N/A 0.813 |
Weight (lb/1000 ft) N/A 1544.0 |
Breaking Strength Soft (lbf) N/A 15240 |
Ampacity N/A 810 |
| 601-01BC6101 601-01BC6101/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 600 MCM |
Strands (#) N/A 61 |
Overall Diameter (in) N/A 0.893 |
Weight (lb/1000 ft) N/A 1853.0 |
Breaking Strength Soft (lbf) N/A 18300 |
Ampacity N/A 910 |
| 750-01BC6101 750-01BC6101/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 750 MCM |
Strands (#) N/A 61 |
Overall Diameter (in) N/A 0.998 |
Weight (lb/1000 ft) N/A 2316.0 |
Breaking Strength Soft (lbf) N/A 22890 |
Ampacity N/A 1040 |
| 1000-01BC6101 1000-01BC6101/Asset/BARE-COPPER-WIRE-TINNED.jpg |
Size (AWG or kcmil) N/A 1000 MCM |
Strands (#) N/A 61 |
Overall Diameter (in) N/A 1.152 |
Weight (lb/1000 ft) N/A 3088.0 |
Breaking Strength Soft (lbf) N/A 30500 |
Ampacity N/A 1240 |
