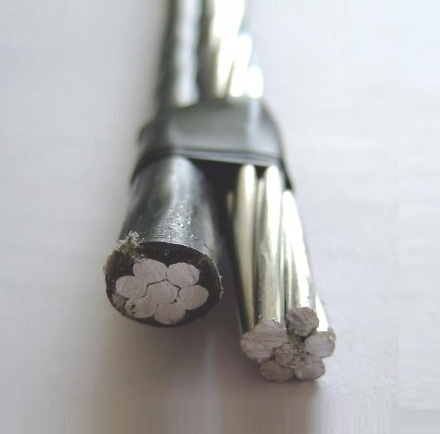

• Duplex Service Drop<br>Aluminum Conductor
Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 ºC maximum.

Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand ACSR neutral messenger.

Standards
  • B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
  • B-231 Aluminum Conductors, Concentric-Lay-Stranded.
  • B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
  • B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
  • B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
  • Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Phase
Conductor
Size/AWG

Phase
Conductor
Stranding

Phase
Conductor
Insulation
Thickness

Bare
Neutral
Messenger
Size/AWG

Bare
Neutral
Strand

Bare
Neutral
Messenger
Breaking
Strength

Weight
Per
(lb/1000 ft)
XLP

Weight
(lb/1000 ft)
Poly

Ampacity
XLP

Ampacity
Poly

N/A 6 N/A Solid N/A 45 mls N/A 6 N/A 6/1 N/A 1190 Lbs N/A 75.0 Lbs N/A 73.2 Lbs N/A 85 Amps N/A 70 Amps
N/A 6 N/A 7/w N/A 45 mls N/A 6 N/A 6/1 N/A 1190 Lbs N/A 78.3 Lbs N/A 74.6 Lbs N/A 85 Amps N/A 70 Amps
N/A 4 N/A Solid N/A 45 mls N/A 4 N/A 6/1 N/A 1860 Lbs N/A 113.7 Lbs N/A 111.6 Lbs N/A 115 Amps N/A 90 Amps
N/A 4 N/A 7/w N/A 45 mls N/A 4 N/A 6/1 N/A 1860 Lbs N/A 118.7 Lbs N/A 113.6 Lbs N/A 115 Amps N/A 90 Amps
N/A 2 N/A 7/w N/A 45 mls N/A 2 N/A 6/1 N/A 2850 Lbs N/A 181.7 Lbs N/A 174.7 Lbs N/A 150 Amps N/A 120 Amps
N/A 1/0 N/A 19/w N/A 60 mls N/A 1/0 N/A 6/1 N/A 4380 Lbs N/A 288.7 Lbs N/A 280.3 Lbs N/A 205 Amps N/A 160 Amps
