Applications

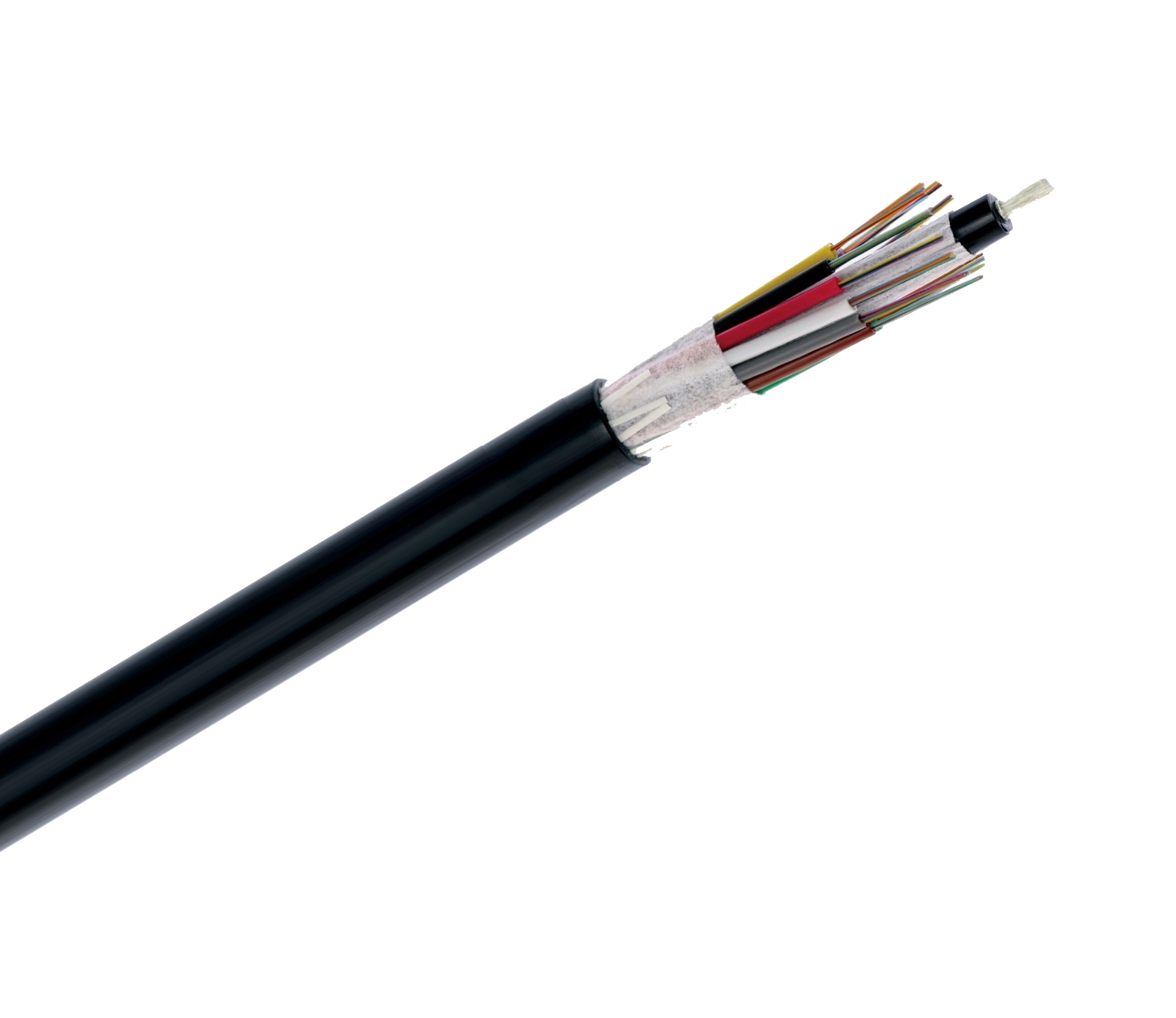

Multi-purpose Outdoor - Aerial Lashed, Duct, Direct Buried

Constructions
Dielectric, Armored, Double Armored

Fiber Count
2 to 432 fibers in Color-coded Buffer Tubes

Fiber Types
Singlemode / Multimode

Options
Gel-Filled Core / Steel Central Member / Copper Pair(s)

Other versions
Central / Heavy-Duty / Indoor-Outdoor

Performance
ANSI/ICEA, IEC, RUS, Telcordia GR-20

Mechanical Specifications
Installation
[+] Maximum installation load 600 lbf (2670 N)
[+] Maximum operation load 180 lbf (800 N)
Temperature Range
[+] Shipping and Storage -40 ºF to +167 ºF (-40 ºC to +75 ºC)
[+] Installation -22 ºF to +140 ºF (-30 ºC to +60 ºC)
[+] Operation -40 ºF to +158 ºF (-40 ºC to +70 ºC)

*Cables with fiber counts greater than 288 contain 24 fibers in a larger PBT buffer tube with 12 fiber binder groups. Rated buffer storage length is 8 feet (2.4 meters)

N/A 5

N/A 0.42

N/A 10.6

N/A 53

N/A 79

N/A 8

N/A 21

N/A 4

N/A 11

LT-DNA-2

N/A 62 to 72

N/A 6

N/A 0.45

N/A 11.5

N/A 63

N/A 94

N/A 9

N/A 23

N/A 5

N/A 11

LT-DNA-3

N/A 74 to 84

N/A 7

N/A 0.49

N/A 12.3

N/A 72

N/A 107

N/A 10

N/A 25

N/A 5

N/A 12

LT-DNA-4

N/A 86 to 96

N/A 8

N/A 0.53

N/A 13.4

N/A 82

N/A 122

N/A 11

N/A 27

N/A 5

N/A 13

LT-DNA-5

N/A 98 to 108

N/A 9

N/A 0.56

N/A 14.2

N/A 90

N/A 134

N/A 11

N/A 28

N/A 6

N/A 14

LT-DNA-6

N/A 110 to 120

N/A 10

N/A 0.6

N/A 15.1

N/A 99

N/A 147

N/A 12

N/A 30

N/A 6

N/A 15

LT-DNA-7

N/A 122 to 132

N/A 11

N/A 0.63

N/A 16.1

N/A 109

N/A 162

N/A 13

N/A 32

N/A 6

N/A 16

LT-DNA-8

N/A 134 to 216

N/A 18

N/A 0.67

N/A 16.9

N/A 126

N/A 187

N/A 13

N/A 34

N/A 7

N/A 17

LT-DNA-9

N/A 218 to 264

N/A 22

N/A 0.74

N/A 18.9

N/A 153

N/A 228

N/A 15

N/A 38

N/A 7

N/A 19

LT-DNA-10

N/A 266 to 288

N/A 24

N/A 0.77

N/A 19.6

N/A 167

N/A 248

N/A 15

N/A 39

N/A 8

N/A 20

LT-DNA-11

N/A 290 to 432*

N/A 18

N/A 0.73

N/A 18.6

N/A 153

N/A 228

N/A 15

N/A 37

N/A 7

N/A 19

Contact

Item #

Fiber
Count

Number
of
Buffer
Tubes

Diameter
(in)

Diameter
(mm)

Approximate
Cable
Weight
lb/MFT

Approximate
Cable
Weight
kg/km

Bend
Radius
Load
(in)

Bend
Radius
Load
(cm)

Bend
Radius
No Load
(in)

Bend
Radius
No Load
(cm)

Item #	Fiber Count	Number of Buffer Tubes	Diameter (in)	Diameter (mm)	Approximate Cable Weight lb/MFT	Approximate Cable Weight kg/km	Bend Radius Load (in)	Bend Radius Load (cm)	Bend Radius No Load (in)	Bend Radius No Load (cm)

LT-DNA-1	N/A 2 to 60	N/A 5	N/A 0.42	N/A 10.6	N/A 53	N/A 79	N/A 8	N/A 21	N/A 4	N/A 11
LT-DNA-2	N/A 62 to 72	N/A 6	N/A 0.45	N/A 11.5	N/A 63	N/A 94	N/A 9	N/A 23	N/A 5	N/A 11
LT-DNA-3	N/A 74 to 84	N/A 7	N/A 0.49	N/A 12.3	N/A 72	N/A 107	N/A 10	N/A 25	N/A 5	N/A 12
LT-DNA-4	N/A 86 to 96	N/A 8	N/A 0.53	N/A 13.4	N/A 82	N/A 122	N/A 11	N/A 27	N/A 5	N/A 13
LT-DNA-5	N/A 98 to 108	N/A 9	N/A 0.56	N/A 14.2	N/A 90	N/A 134	N/A 11	N/A 28	N/A 6	N/A 14
LT-DNA-6	N/A 110 to 120	N/A 10	N/A 0.6	N/A 15.1	N/A 99	N/A 147	N/A 12	N/A 30	N/A 6	N/A 15
LT-DNA-7	N/A 122 to 132	N/A 11	N/A 0.63	N/A 16.1	N/A 109	N/A 162	N/A 13	N/A 32	N/A 6	N/A 16
LT-DNA-8	N/A 134 to 216	N/A 18	N/A 0.67	N/A 16.9	N/A 126	N/A 187	N/A 13	N/A 34	N/A 7	N/A 17
LT-DNA-9	N/A 218 to 264	N/A 22	N/A 0.74	N/A 18.9	N/A 153	N/A 228	N/A 15	N/A 38	N/A 7	N/A 19
LT-DNA-10	N/A 266 to 288	N/A 24	N/A 0.77	N/A 19.6	N/A 167	N/A 248	N/A 15	N/A 39	N/A 8	N/A 20
LT-DNA-11	N/A 290 to 432*	N/A 18	N/A 0.73	N/A 18.6	N/A 153	N/A 228	N/A 15	N/A 37	N/A 7	N/A 19
