Loose Tube Fiber Optic Single Jacket Armored
Loose Tube Fiber Optic Cable
Applications
Multi-purpose Outdoor - Aerial Lashed, Duct, Direct Buried
Constructions
Dielectric, Armored, Double Armored
Fiber Count
2 to 432 fibers in Color-coded Buffer Tubes
Fiber Types
Singlemode / Multimode
Options
Gel-Filled Core / Steel Central Member / Copper Pair(s)
Other versions
Central / Heavy Duty / Indoor-Outdoor
Performance
ANSI/ICEA, IEC, RUS, Telcordia GR-20
Mechanical Specifications
Installation
[+] Maximum installation load 600 lbf (2670 N)
[+] Maximum operation load 180 lbf (800 N)
Temperature Range
[+] Shipping and Storage -40 ºF to +167 ºF (-40 ºC to +75 ºC)
[+] Installation -22 ºF to +140 ºF (-30 ºC to +60 ºC)
[+] Operation -40 ºF to +158 ºF (-40 ºC to +70 ºC)
*Cables with fiber counts greater than 288 contain 24 fibers in a larger PBT buffer tube with 12 fiber binder groups. Rated buffer storage length is 8 feet (2.4 meters)
Multi-purpose Outdoor - Aerial Lashed, Duct, Direct Buried
Constructions
Dielectric, Armored, Double Armored
Fiber Count
2 to 432 fibers in Color-coded Buffer Tubes
Fiber Types
Singlemode / Multimode
Options
Gel-Filled Core / Steel Central Member / Copper Pair(s)
Other versions
Central / Heavy Duty / Indoor-Outdoor
Performance
ANSI/ICEA, IEC, RUS, Telcordia GR-20
Mechanical Specifications
Installation
[+] Maximum installation load 600 lbf (2670 N)
[+] Maximum operation load 180 lbf (800 N)
Temperature Range
[+] Shipping and Storage -40 ºF to +167 ºF (-40 ºC to +75 ºC)
[+] Installation -22 ºF to +140 ºF (-30 ºC to +60 ºC)
[+] Operation -40 ºF to +158 ºF (-40 ºC to +70 ºC)
*Cables with fiber counts greater than 288 contain 24 fibers in a larger PBT buffer tube with 12 fiber binder groups. Rated buffer storage length is 8 feet (2.4 meters)
Item # |
Fiber
|
Number
|
Diameter
|
Diameter
|
Approximate
|
Approximate
|
Bend
|
Bend
|
Bend
|
Bend
|
|---|---|---|---|---|---|---|---|---|---|---|

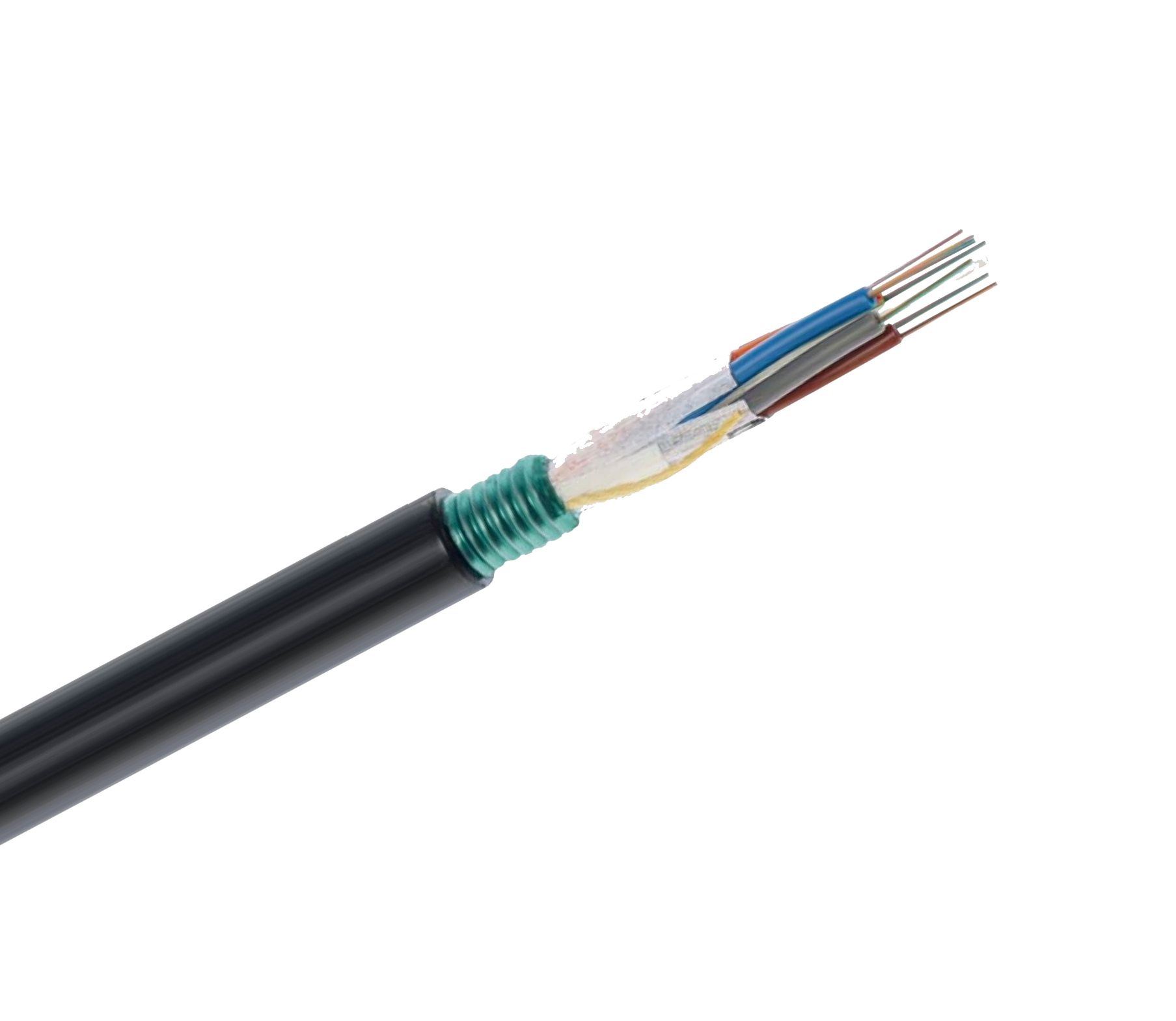

| LT-SJA-1 LT-SJA-1/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 2 to 60 |
Number of Buffer Tubes N/A 5 |
Diameter (in) N/A 0.48 |
Diameter (mm) N/A 12.2 |
Approximate Cable Weight lb/MFT N/A 98 |
Approximate Cable Weight kg/km N/A 146 |
Bend Radius Load (in) N/A 10 |
Bend Radius Load (cm) N/A 24 |
Bend Radius No Load (in) N/A 7 |
Bend Radius No Load (cm) N/A 18 |
| LT-SJA-2 LT-SJA-2/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 62 to 72 |
Number of Buffer Tubes N/A 6 |
Diameter (in) N/A 0.51 |
Diameter (mm) N/A 13 |
Approximate Cable Weight lb/MFT N/A 109 |
Approximate Cable Weight kg/km N/A 162 |
Bend Radius Load (in) N/A 10 |
Bend Radius Load (cm) N/A 26 |
Bend Radius No Load (in) N/A 8 |
Bend Radius No Load (cm) N/A 20 |
| LT-SJA-3 LT-SJA-3/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 74 to 84 |
Number of Buffer Tubes N/A 7 |
Diameter (in) N/A 0.55 |
Diameter (mm) N/A 14 |
Approximate Cable Weight lb/MFT N/A 122 |
Approximate Cable Weight kg/km N/A 182 |
Bend Radius Load (in) N/A 11 |
Bend Radius Load (cm) N/A 28 |
Bend Radius No Load (in) N/A 8 |
Bend Radius No Load (cm) N/A 21 |
| LT-SJA-4 LT-SJA-4/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 86 to 96 |
Number of Buffer Tubes N/A 8 |
Diameter (in) N/A 0.59 |
Diameter (mm) N/A 15 |
Approximate Cable Weight lb/MFT N/A 135 |
Approximate Cable Weight kg/km N/A 201 |
Bend Radius Load (in) N/A 12 |
Bend Radius Load (cm) N/A 30 |
Bend Radius No Load (in) N/A 9 |
Bend Radius No Load (cm) N/A 23 |
| LT-SJA-5 LT-SJA-5/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 98 to 108 |
Number of Buffer Tubes N/A 9 |
Diameter (in) N/A 0.620 |
Diameter (mm) N/A 15.8 |
Approximate Cable Weight lb/MFT N/A 146 |
Approximate Cable Weight kg/km N/A 218 |
Bend Radius Load (in) N/A 12 |
Bend Radius Load (cm) N/A 32 |
Bend Radius No Load (in) N/A 9 |
Bend Radius No Load (cm) N/A 24 |
| LT-SJA-6 LT-SJA-6/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 110 to 120 |
Number of Buffer Tubes N/A 10 |
Diameter (in) N/A 0.66 |
Diameter (mm) N/A 16.8 |
Approximate Cable Weight lb/MFT N/A 161 |
Approximate Cable Weight kg/km N/A 240 |
Bend Radius Load (in) N/A 13 |
Bend Radius Load (cm) N/A 34 |
Bend Radius No Load (in) N/A 10 |
Bend Radius No Load (cm) N/A 25 |
| LT-SJA-7 LT-SJA-7/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 122 to 132 |
Number of Buffer Tubes N/A 11 |
Diameter (in) N/A 0.69 |
Diameter (mm) N/A 17.6 |
Approximate Cable Weight lb/MFT N/A 171 |
Approximate Cable Weight kg/km N/A 255 |
Bend Radius Load (in) N/A 14 |
Bend Radius Load (cm) N/A 35 |
Bend Radius No Load (in) N/A 10 |
Bend Radius No Load (cm) N/A 26 |
| LT-SJA-8 LT-SJA-8/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 134 to 216 |
Number of Buffer Tubes N/A 18 |
Diameter (in) N/A 0.73 |
Diameter (mm) N/A 18.6 |
Approximate Cable Weight lb/MFT N/A 195 |
Approximate Cable Weight kg/km N/A 291 |
Bend Radius Load (in) N/A 15 |
Bend Radius Load (cm) N/A 37 |
Bend Radius No Load (in) N/A 11 |
Bend Radius No Load (cm) N/A 28 |
| LT-SJA-9 LT-SJA-9/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 218 to 264 |
Number of Buffer Tubes N/A 22 |
Diameter (in) N/A 0.810 |
Diameter (mm) N/A 20.6 |
Approximate Cable Weight lb/MFT N/A 231 |
Approximate Cable Weight kg/km N/A 344 |
Bend Radius Load (in) N/A 16 |
Bend Radius Load (cm) N/A 41 |
Bend Radius No Load (in) N/A 12 |
Bend Radius No Load (cm) N/A 31 |
| LT-SJA-10 LT-SJA-10/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 266 to 288 |
Number of Buffer Tubes N/A 24 |
Diameter (in) N/A 0.84 |
Diameter (mm) N/A 21.4 |
Approximate Cable Weight lb/MFT N/A 242 |
Approximate Cable Weight kg/km N/A 360 |
Bend Radius Load (in) N/A 17 |
Bend Radius Load (cm) N/A 43 |
Bend Radius No Load (in) N/A 13 |
Bend Radius No Load (cm) N/A 32 |
| LT-SJA-11 LT-SJA-11/Asset/Single-Jacket-Single-Armor-Dry.jpg |
Fiber Count N/A 290 to 432* |
Number of Buffer Tubes N/A 18 |
Diameter (in) N/A 0.80 |
Diameter (mm) N/A 20.3 |
Approximate Cable Weight lb/MFT N/A 225 |
Approximate Cable Weight kg/km N/A 225 |
Bend Radius Load (in) N/A 16 |
Bend Radius Load (cm) N/A 41 |
Bend Radius No Load (in) N/A 12 |
Bend Radius No Load (cm) N/A 31 |
