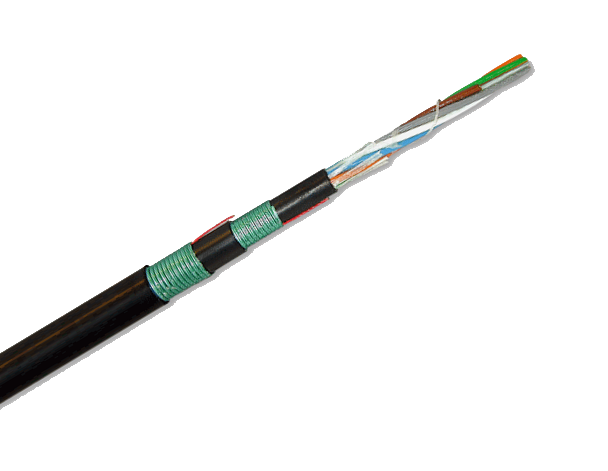

Applications
Multi-purpose Outdoor - Aerial Lashed, Duct, Direct Buried

Constructions
Dielectric, Armored, Double Armored

Fiber Count
2 to 432 fibers in Color-coded Buffer Tubes

Fiber Types
Single-mode / Multi-mode

Options
Gel-Filled Core / Steel Central Member / Copper Pair(s)

Other versions
Central / Heavy Duty / Indoor-Outdoor

Performance
ANSI/ICEA, IEC, RUS, Telcordia GR-20

Mechanical Specifications
Installation
[+] Maximum installation load 600 lbf (2670 N)
[+] Maximum operation load 180 lbf (800 N)
Temperature Range
[+] Shipping and Storage -40 ºF to +167 ºF (-40 ºC to +75 ºC)
[+] Installation -22 ºF to +140 ºF (-30 ºC to +60 ºC)
[+] Operation -40 ºF to +158 ºF (-40 ºC to +70 ºC)

*Cables with fiber counts greater than 288 contain 24 fibers in a larger PBT buffer tube with 12 fiber binder groups. Rated buffer storage length is 8 feet (2.4 meters)

N/A 5

N/A 0.73

N/A 18.6

N/A 235

N/A 350

N/A 15

N/A 37

N/A 11

N/A 28

LT-TJDA-2

N/A 62 to 72

N/A 6

N/A 0.760

N/A 19.4

N/A 270

N/A 402

N/A 15

N/A 39

N/A 11

N/A 29

LT-TJDA-3

N/A 74 to 84

N/A 7

N/A 0.80

N/A 20.4

N/A 292

N/A 434

N/A 16

N/A 41

N/A 12

N/A 31

LT-TJDA-4

N/A 86 to 96

N/A 8

N/A 0.84

N/A 21.4

N/A 317

N/A 472

N/A 17

N/A 43

N/A 13

N/A 32

LT-TJDA-5

N/A 98 to 108

N/A 9

N/A 0.87

N/A 22.1

N/A 333

N/A 495

N/A 17

N/A 44

N/A 13

N/A 33

LT-TJDA-6

N/A 110 to 120

N/A 10

N/A 0.91

N/A 23.2

N/A 359

N/A 534

N/A 18

N/A 46

N/A 14

N/A 35

LT-TJDA-7

N/A 122 to 132

N/A 11

N/A 0.94

N/A 23.9

N/A 377

N/A 561

N/A 19

N/A 48

N/A 14

N/A 36

LT-TJDA-8

N/A 134 to 216

N/A 18

N/A 0.98

N/A 24.9

N/A 412

N/A 613

N/A 20

N/A 50

N/A 15

N/A 37

LT-TJDA-9

N/A 218 to 264

N/A 22

N/A 1.06

N/A 27.0

N/A 468

N/A 696

N/A 21

N/A 54

N/A 16

N/A 40

LT-TJDA-10

N/A 266 to 288

N/A 24

N/A 1.09

N/A 27.7

N/A 488

N/A 727

N/A 22

N/A 55

N/A 16

N/A 42

LT-TJDA-11

N/A 290 to 432*

N/A 18

N/A 1.08

N/A 27.4

N/A 486

N/A 723

N/A 22

N/A 55

N/A 16

N/A 42

Contact

Item #

Fiber
Count

Number
of
Buffer
Tubes

Diameter
(in)

Diameter
(mm)

Approximate
Cable
Weight
lb/MFT

Approximate
Cable
Weight
kg/km

Bend
Radius
Load
(in)

Bend
Radius
Load
(cm)

Bend
Radius
No Load
(in)

Bend
Radius
No Load
(cm)

Item #	Fiber Count	Number of Buffer Tubes	Diameter (in)	Diameter (mm)	Approximate Cable Weight lb/MFT	Approximate Cable Weight kg/km	Bend Radius Load (in)	Bend Radius Load (cm)	Bend Radius No Load (in)	Bend Radius No Load (cm)

LT-TJDA-1	N/A 2 to 60	N/A 5	N/A 0.73	N/A 18.6	N/A 235	N/A 350	N/A 15	N/A 37	N/A 11	N/A 28
LT-TJDA-2	N/A 62 to 72	N/A 6	N/A 0.760	N/A 19.4	N/A 270	N/A 402	N/A 15	N/A 39	N/A 11	N/A 29
LT-TJDA-3	N/A 74 to 84	N/A 7	N/A 0.80	N/A 20.4	N/A 292	N/A 434	N/A 16	N/A 41	N/A 12	N/A 31
LT-TJDA-4	N/A 86 to 96	N/A 8	N/A 0.84	N/A 21.4	N/A 317	N/A 472	N/A 17	N/A 43	N/A 13	N/A 32
LT-TJDA-5	N/A 98 to 108	N/A 9	N/A 0.87	N/A 22.1	N/A 333	N/A 495	N/A 17	N/A 44	N/A 13	N/A 33
LT-TJDA-6	N/A 110 to 120	N/A 10	N/A 0.91	N/A 23.2	N/A 359	N/A 534	N/A 18	N/A 46	N/A 14	N/A 35
LT-TJDA-7	N/A 122 to 132	N/A 11	N/A 0.94	N/A 23.9	N/A 377	N/A 561	N/A 19	N/A 48	N/A 14	N/A 36
LT-TJDA-8	N/A 134 to 216	N/A 18	N/A 0.98	N/A 24.9	N/A 412	N/A 613	N/A 20	N/A 50	N/A 15	N/A 37
LT-TJDA-9	N/A 218 to 264	N/A 22	N/A 1.06	N/A 27.0	N/A 468	N/A 696	N/A 21	N/A 54	N/A 16	N/A 40
LT-TJDA-10	N/A 266 to 288	N/A 24	N/A 1.09	N/A 27.7	N/A 488	N/A 727	N/A 22	N/A 55	N/A 16	N/A 42
LT-TJDA-11	N/A 290 to 432*	N/A 18	N/A 1.08	N/A 27.4	N/A 486	N/A 723	N/A 22	N/A 55	N/A 16	N/A 42
